Postek TW8 Wide Industrial Label Printer

Company about

Features

           POSTEK TW series, is the high performance wide format label printer developed by Postek, with a maximum media loading width of 10″.

  • » 8.64''effective printing width.
  • » Innovative “Push & Draw Media Compartment” Design, easily operated in use, space-saving in storage.
  • » Unique “Easily Adjustable TPH Pressure Technology” enables simple knob-rotating pressure adjustment and guarantees optimal print quality.
  • » Smartly “Adjustable Ribbon Tension Technology” ensures strong compatibility with various consumables.
  • » Designed for convenient maintenance and minimal adjustments.
  • » Ribbon-end detection provides predictive ribbon-out warn, improving working efficiency.
  • » Extensible Wi-Fi, Bluetooth and RFID function.

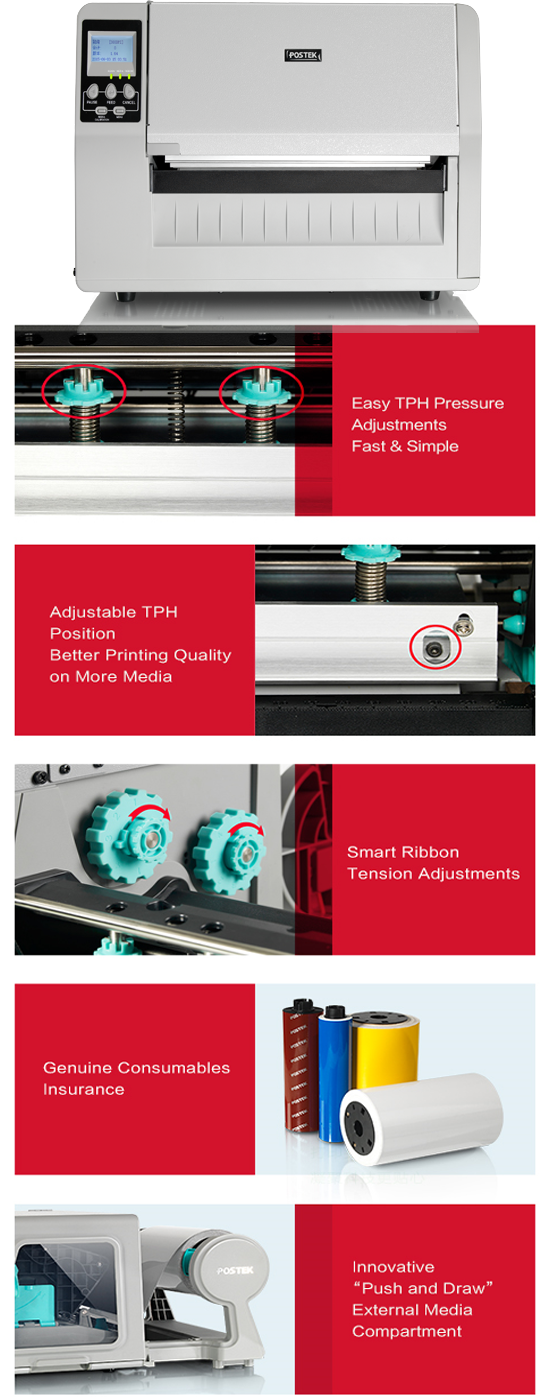

tw8 Overview
Specifications
Printing Method Thermal Transfer / Direct Thermal
Printing Resolution 300 dpi
Max Printing Speed 4 ips (101.6 mm/s)
Max Printing Width 8.64″(219.5 mm)
Max Printing Length 79″(2000 mm)
Memory 8 MB FLASH ROM, 16 MB SDRAM
HEAT™ Level I
Media Roll-feed, die-cut, continuous, fan-fold, tags, tickets in plain paper or  thermal paper.
Width: 10.23″ (260 mm) max., 3.54″ (90 mm) min.
Supply roll: OD 8.27″ (210 mm) max., ID 3″ (76.2 mm) min.
Thickness: 0.0024″ - 0.019″(0.06 - 0.48 mm), including liner.
Ribbon Wax, Wax/Resin, Resin
Ribbon roll: OD 3.54″ (90 mm) max., ID 1″ (25.4 mm) core
Max width: 220 mm; Max length: 600 m. Ink side: Out
Media Sensor Reflective (Adjustable) / Transmissive(Adjustable)
Fonts Five built-in dot martrix ASCII fonts, Downloadable TrueType fonts
Barcode Types 1D Barcode: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128;
2D Barcode: MaxiCode, PDF417, Datamatrix, QR Code.
Interfaces RS-232 Serial, 10/100 M-bit Ethernet, USB DEVICE 2.0, USB Host, Centronics Parallel
LCD Display Graphic Dot Matrix
Power Rating 110/240 VAC±10%, 50/60 Hz
Weight 9 kgs
Dimensions W 14.8''(375 mm) x D 17.1''(435 mm) x H 9.8''(250mm) Media compartment withdrawn
Operating Environment emperature: 0℃ – 40℃ (32°F ~ +104°F); Relative humidity: 5% - 85% non condensing
Storage Environment Temperature: -40℃ – 60℃ (-40°F ~ +140°F); Relative humidity: 5% - 85% non condensing
Optional Items Centronics Parallel, Rotary Cutter
Expandable UHF RFID, Wi-Fi, Bluetooth
Warranty One Year Factory Warranty

HEAT™, Heating Equilibrium Adaptive Tuning, newly developed by POSTEK, is a cutting edge technology in heating control of thermal print-heads. With HEAT™, the POSTEK printers can significantly improve their performance in the aspects of printout clarity and print speed. The HEAT™ level represents the fineness of the heating uniformity with level I being the finest.

Descriptions Download
Data Sheet - English A4 ( Size - 707 KB) about
Seagull Driver - 2018.1_M-2 (Size - 38.70 MB) about
Printer Utility 3.0 (Size - 7.97 MB) about
