Postek G2000 Barcode Label Printer
Features

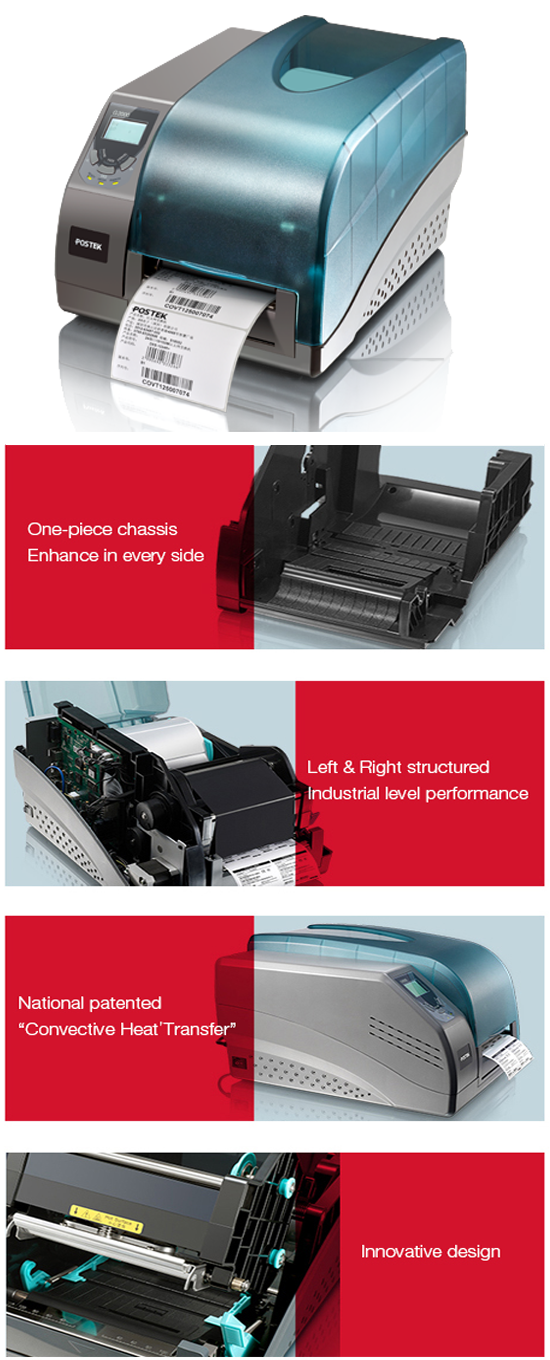

ENJOY A DESKTOP FOOTPRINT WITH INDUSTRIAL FEATURES AND PERFORMANCE
- » Small and lightweight with the stamina of a metal industrial printer.
- » Revolutionary one-piece frame ensures stability and durability.
- » Innovative Convective Heat Transfer guarantees stable 24/7 printing in an appropriate working temperature.
- » Single spring TPH module design prevents the ribbon from wrinkling allowing a more efficient printing experience.
- » Unique platen roller structure provides easy access for quick changes and cleaning.
| Specifications | |
|---|---|
| Printing Method | Thermal Transfer / Direct Thermal |
| Printing Resolution | 203 dpi |
| Max Printing Speed | 6 ips (152.4 mm/s) |
| Max Printing Width | 4.25″ (108 mm) |
| Max Printing Length | 315″(8000 mm) |
| Memory | 8 MB FLASH ROM, 16 MB SDRAM |
| HEAT™ Level | II |
| Media | Roll-feed, die-cut, continuous, fan-fold, tags, tickets in plain paper or thermal paper. Width: 4.33″ (110 mm) max., 0.98″ (25 mm) min. Supply roll: OD 6″ (152 mm) max., ID 1″ (25.4 mm) min. Thickness: 0.003″ - 0.008″(0.08 - 0.20 mm), including liner. |
| Ribbon | Wax, Wax/Resin, Resin Ribbon roll: OD 2.75″ (70 mm) max., ID 1″ (25.4 mm) core Max width: 110 mm; Max length: 300 m. Ink side: Out |
| Media Sensor | Reflective (Adjustable) / Transmissive(Adjustable) |
| Fonts | Five built-in ASCII fonts, Downloadable TrueType fonts |
| Barcode Types | 1D Barcode: Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2
and 5 add-on, EAN-13/8/128, UCC-128; 2D Barcode: MaxiCode, PDF417, Datamatrix, QR Code. |
| Interfaces | RS-232 Serial, 10/100 M-bit Ethernet, USB DEVICE 2.0, USB Host, Centronics Parallel(Optional) |
| Power Rating | 24 VDC, 2.5A |
| Weight | 3.5 kgs |
| Dimensions | W 256 mm x D 329 mm x H 200 mm |
| Operating Environment | emperature: 0℃ – 40℃ (32°F ~ +104°F); Relative humidity: 5% - 85% non condensing |
| Storage Environment | Temperature: -40℃ – 60℃ (-40°F ~ +140°F); Relative humidity: 5% - 85% non condensing |
| Optional Items | Wi-Fi,Rotary Cutter, Media Guide Adaptor, External Rewinder, External Media Stand and Centronics Parallel |
| Warranty | One Year Factory Warranty |
HEAT™, Heating Equilibrium Adaptive Tuning, newly developed by POSTEK, is a cutting edge technology in heating control of thermal print-heads. With HEAT™, the POSTEK printers can significantly improve their performance in the aspects of printout clarity and print speed. The HEAT™ level represents the fineness of the heating uniformity with level I being the finest.
